CriticalPoint Class Reference

It represents a particular CriticalPoint. More...

#include <CriticalPoint.h>

Collaboration diagram for CriticalPoint:

Public Types
enum class	Type : uint8_t { CORE = 1 , DELTA = 2 }
	Type of CriticalPoint. More...

Public Member Functions
void	WriteTo (Writer &writer) const final
	Write itself into writer.
	CriticalPoint (Point pointArg, Type typeArg, Angle angleArg)
	It creates CriticalPoint with given parameters.

Public Attributes
Point	center
	CriticalPoint point.
Type	type
	CriticalPoint type (core/delta).
Angle	angle
	The orientation of the point is represented in degrees, with zero degrees pointing horizontally and to the right and increasing degrees proceeding counter-clockwise [9].

Detailed Description

It represents a particular CriticalPoint.

Member Enumeration Documentation

Type

enum class Type : uint8_t

strong

Type of CriticalPoint.

Critical points types

Enumerator

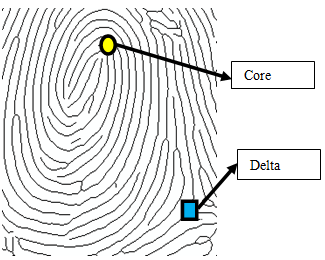

CORE	Core is topmost point on the innermost recurving ridge line of a fingerprint [4].
DELTA	Delta is point on a ridge at or nearest to the point of divergence of two type lines (one of the two innermost friction ridges and located at or directly in front of the point of divergence [4].

Constructor & Destructor Documentation

CriticalPoint()

CriticalPoint ( Point pointArg, Type typeArg, Angle angleArg )

inline

It creates CriticalPoint with given parameters.

Parameters

pointArg	CriticalPoint point
typeArg	CriticalPoint type (core/delta)
angleArg	The orientation of the point is represented in degrees, with zero degrees pointing horizontally and to the right and increasing degrees proceeding counter-clockwise [9].

References angle, center, and type.

Member Function Documentation

WriteTo()

void WriteTo ( Writer & writer ) const

inlinefinalvirtual

Write itself into writer.

Parameters

writer

Writer to use to serialize this Serializable

Implements Serializable.

References angle, center, and type.

---

The documentation for this class was generated from the following file:

• Print/CriticalPoint.h
