REST API

The REST API is the command surface of Face Matcher. You use it to create watchlists, enroll members, identify or verify faces on still images, run liveness checks, and to register and configure cameras and edge streams. Requests and responses are JSON over HTTP using the standard GET, POST, PUT and DELETE methods, so any language with an HTTP client can talk to it. Data querying is deliberately thin on this side; for reporting and event history use the GraphQL API.

Base URL and Swagger UI

Where the client runs	Base URL
On the host or elsewhere on the network	http://localhost:8098 (replace localhost with the server address)
In a container on face-matcher-network	http://api:8080

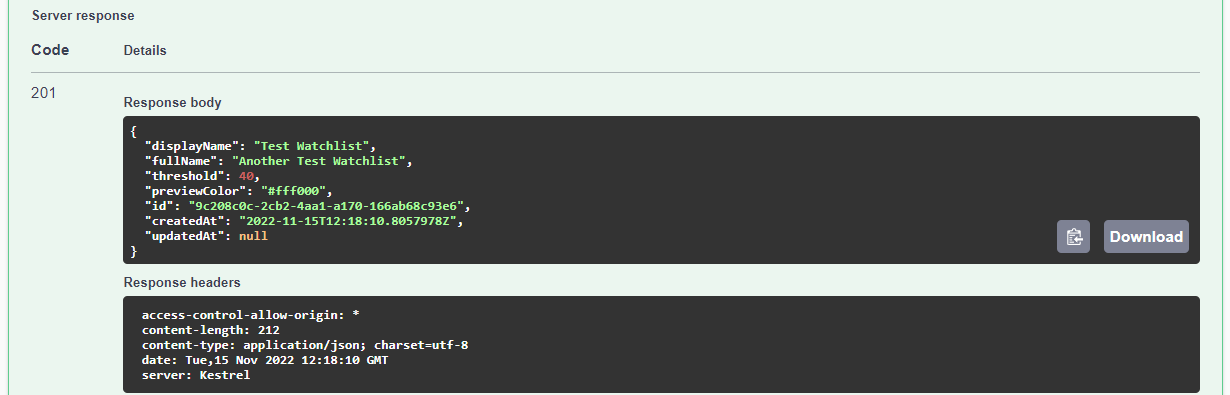

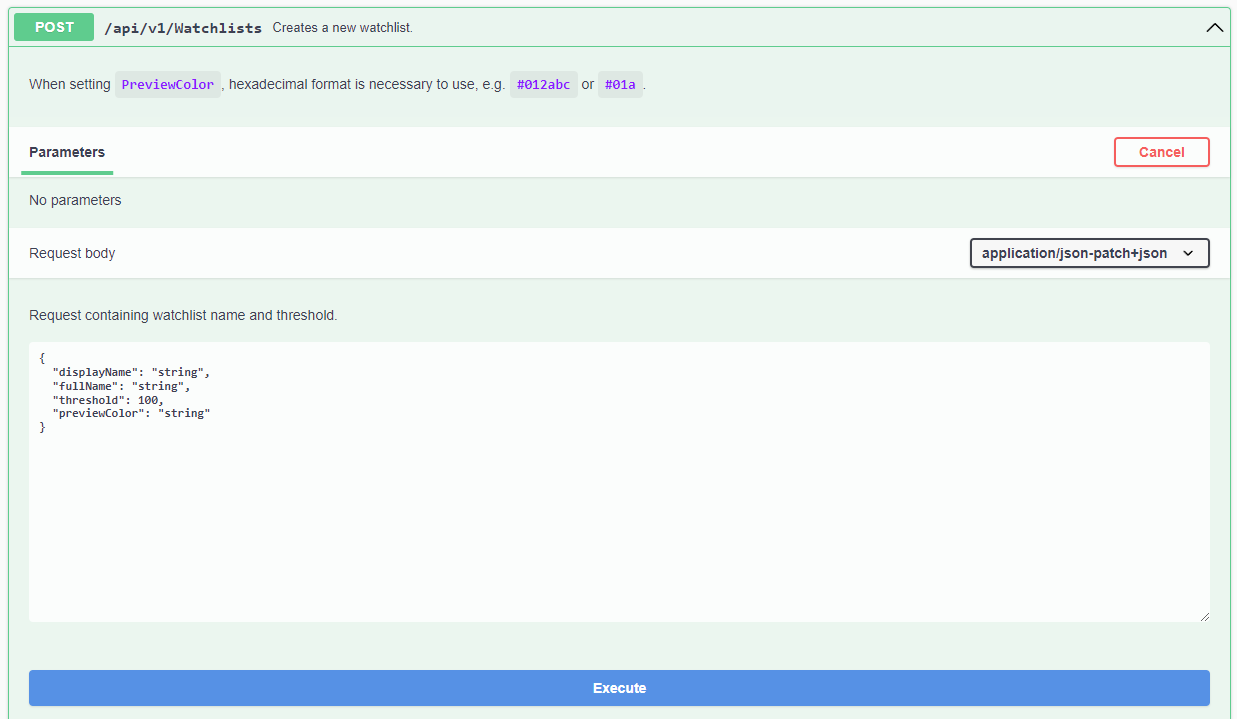

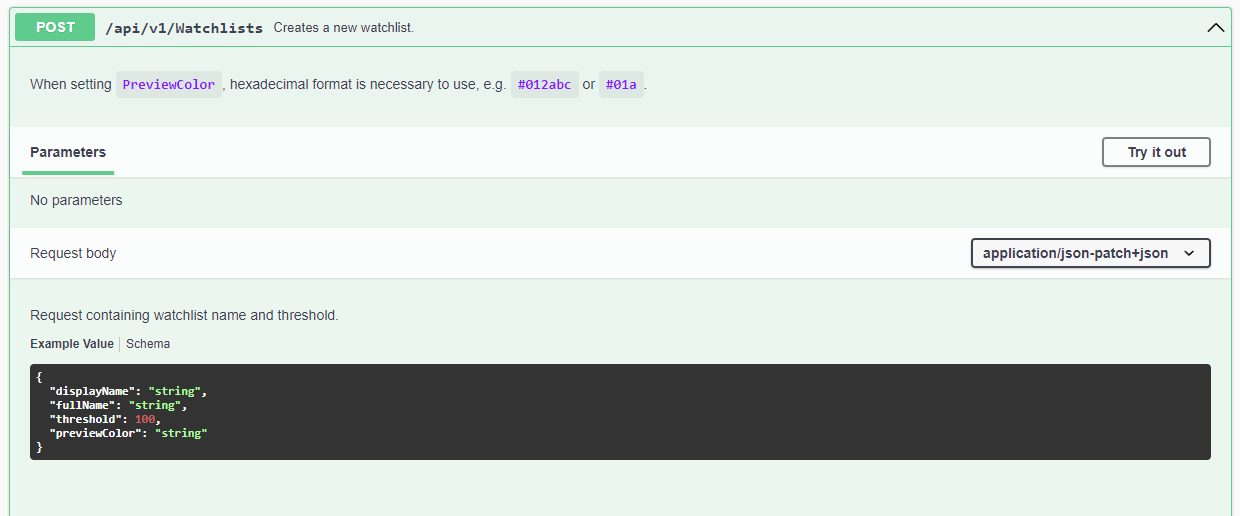

All endpoints live under /api/v1/. The container always listens on port 8080; Compose publishes it on 8098 on the host, so never use 8098 for in-network traffic. The API ships with a Swagger UI at the base URL, which is the authoritative, version-matched reference for every endpoint and schema: open http://localhost:8098 in a browser, expand a group, pick an endpoint, click Try it out, fill in the request and click Execute.

Authentication is off by default. When you enable OAuth2/OIDC with Authentication__*, every call needs a bearer token and Swagger UI gains an Authorize button; see the Authentication guide.

Feature sets

The api service exposes one of four feature sets, selected with the FeatureManagement__* variables in section 3.2 of .env. Full is the default and the one Station requires. The reduced sets are for deployments that expose the API to a third party and want to limit its surface.

Feature set	Variable	What it exposes
Full (default)	FeatureManagement__Full=true	Every endpoint group below
Watchlist	FeatureManagement__Watchlist=true	API-only identification: watchlists, watchlist members, search, verification, liveness and detection on still images, no camera management
Edge	FeatureManagement__Edge=true	Edge stream management and the data they produce (including pedestrians)
Detection	FeatureManagement__Detection=true	The Detect endpoint only

Set exactly one of them to true. FeatureManagement__ReadOnlyWatchlists=true additionally disables PUT, POST and DELETE on the Watchlists and WatchlistMembers groups, which is useful on a Follower where watchlists are managed centrally.

Endpoint groups

Group	Methods	Purpose
Camera	GET, POST, PUT, DELETE	Register, configure and remove RTSP cameras; list their tracklets and frames; enable the enhanced preview
Detection	POST	Run the detectors on a still image and return bounding boxes without matching
EdgeStream	GET, POST, PUT, DELETE	Register and configure edge streams and their watchlist synchronization
Face	GET, POST, DELETE	Retrieve stored faces and their templates; search the face history by image; verify two images (1:1); run a liveness check
Frame	GET, DELETE	Retrieve or delete full frames captured from cameras and edge streams
Image	GET	Download any stored image (face crop, frame, pedestrian, object) by its image data ID, optionally resized
Pedestrian	GET, DELETE	Retrieve pedestrian detections and their attributes
Setup	GET, PUT	Global configuration: data storage and save strategies, database cleanup, feature flags, preview colours, search-session cleanup, watchlist autolearn
Tracklet	GET, DELETE	Retrieve tracklets (one tracked person across consecutive frames)
Version	GET	Server and database version
Watchlists	GET, POST, PUT, DELETE	Create and manage watchlists; identify (1:N) by image or by template
WatchlistMembers	GET, POST, PUT, DELETE	Register and manage watchlist members and their faces; link and unlink members to watchlists

The Setup group is split in Swagger UI into SetupDataStorage, SetupDbCleanup, SetupFeatures, SetupPreview, SetupSearchSessionsCleanup and SetupWatchlistAutoLearn. The data storage and cleanup endpoints are described under Data retention.

Enrollment limits and image download

A single POST /api/v1/WatchlistMembers/Register request accepts up to 50 images (WatchlistMemberRegistration__MaxImages=50). Images can be sent inline as Base64 or referenced by an HTTP(S) URI that the API downloads for you. Downloads are governed by the ImageDownload__* settings in .env:

Setting	Default	Meaning
ImageDownload__AllowedHosts	*	Comma-separated hosts the API may download from, for example images.example.com,*.cdn.com:8443. Restrict this before exposing the API.
ImageDownload__TimeoutMs	10000	Per-image download timeout
ImageDownload__MaxImageSizeBytes	10485760	Largest accepted image (10 MB)
ImageDownload__MaxParallelDownloads	5	Parallel downloads within one registration request

Every enrollment image passes face validation (FaceValidation__*: minimum face size 30 px, yaw, pitch and roll within ±20°, minimum quality) before a template is stored; see Enrollment image quality. For a step-by-step walkthrough of the enrollment and identification calls, continue with Enroll and identify via REST.
